B型 雙聯萬向節 | ||||||||

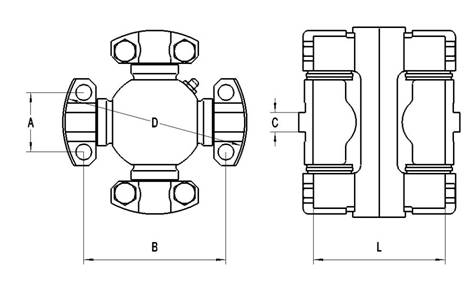

編號 | 規格 | A (mm) | B (mm) | C (mm) | D (mm) | L (mm) | 軸承型式 | 參考件號 |
B7 | 2C | 33.32 | 59.5 | 9.5 | 79.35 | 74.93 | 2LWD, 2LWT/4LWD | |
B6 | 4C | 36.52 | 87.3 | 9.5 | 107.9 | 79 | 2HWD, 2LWT/2HWD, 2LWD | HS543-HS545 |
B8 | 5C | 42.88 | 88.9 | 14.26 | 115.06 | 105 | 4HWD/4HWD | CA25 |
B4 | 6C | 42.88 | 114.3 | 14.26 | 140.46 | 119.96 | 4HWD/4HWD | 144-15-17001 |
B5 | 6C | 42.88 | 114.3 | 15.85 | 140.46 | 127 | 4HWD/4HWD | |
B3 | 7C | 49.2 | 117.46 | 15.85 | 148.38 | 119.96 | 4HWD/4HWD | 144-10-12100 |
B1 | 8.5C | 71.4 | 123.8 | 15.85 | 165.1 | 158.8 | 4HWD/4HWD | 175-20-11000 |
B2 | 50 | 180.1 | 16 | 208 | 135 | 4HWD/4HWD | 154-20-10002 | |
B9 | 9C | 71.44 | 168.3 | 15.85 | 209.52 | 198 | 4HWD/4HWD |
